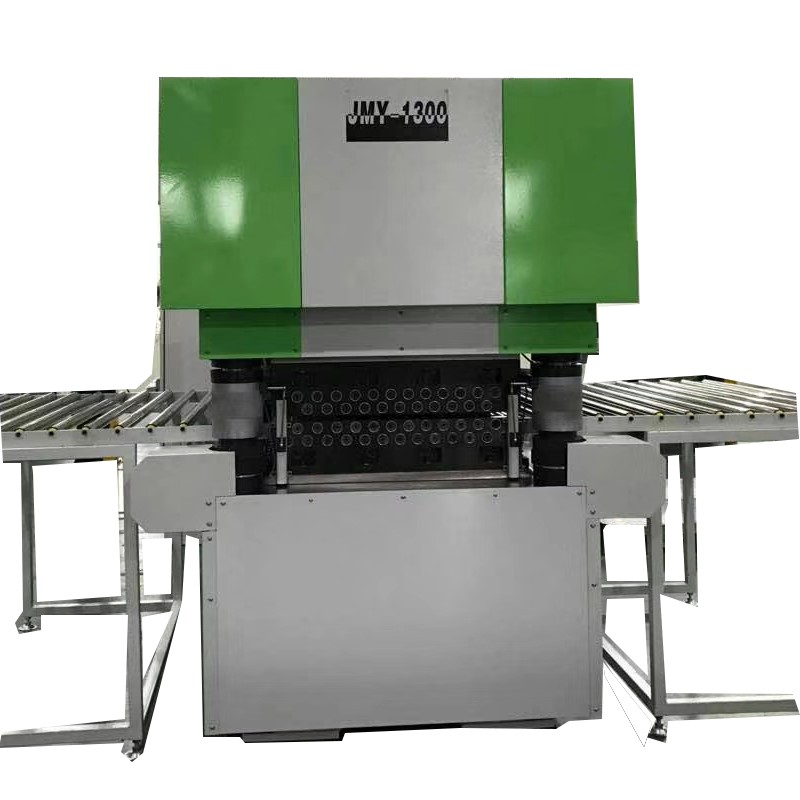

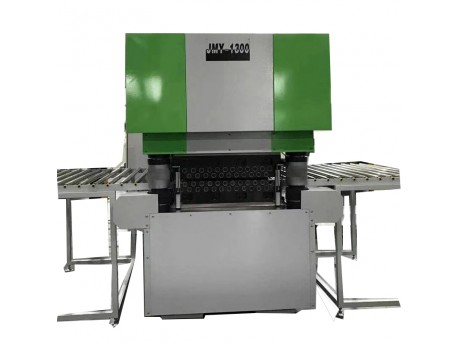

Hydraulic precision leveler (YZJ4 series)
High accuracy
no roller imprint
Fit for both coils and plates (including finished products)
Six folds hydraulic precision levelers, also named hydraulic straightener or hydraulic leveler, is a machine that can level nonferrous metal plates, mirror plates, gold plating plates, stamping parts, laser cutting parts, flame cutting parts and other plates, sheet metal and metal parts which needs high precision in surface leveling. This leveler can work separately and also can work with uncoiler and power press to be part of stamping line. When working separately, this leveler can level stamped finished products, especially in the saw blade and chain industry.
Comparison of 4 folds leveling and 6 folds leveling
Specifications of Hydraulic straightener (YZJ4 series) BASED ON Q235 MATERIAL
◎ Flat Parts ◎ Sheet Metal
| Lathe Model | YZJ4-500 | YZJ4-1000 | YZJ4-1300 |
| Roller Diameter | φ40mm | φ40mm | φ40mm |
| Roller Number | 23 | 23 | 23 |
| Max. Leveling Width | 500mm | 1000mm | 1300mm |
| Rated Plate Thickness(Q235) | 0.6~2.5mm | 0.6~2.5mm | 0.6~2.5mm |
| Max. Plate Thickness(Q235) | 6mm | 6mm | 6mm |
| Leveled Precision(GB/T184-1996) | H | H | H |
| Applictions | Tape Coiling. Strip Steel, Sheet Metals,etc. | ||
| Technical Features | Tiny roller imprint and high leveling precision | ||
Table for Leveled Width Range of YZJ4 Series (Material Q235/Yield Strength 235mpa)
| Thicknesswidth (in mm) | YZJ4-500 | YZJ4-1000 | YZJ4-1300 |
| 0.6~2.5 | 500 | 1000 | 1300 |
| 3 | 410 | 830 | 1080 |
| 4 | 310 | 620 | 810 |
| 5 | 250 | 500 | 650 |
| 6 | 200 | 410 | 540 |
| CNC and electric adjustment are optional; other sizes, widths and speeds are customizable | |||
Features of hydraulic straightener
Common defects of ordinary leveling
1. Ordinary leveler can't level high strength material, because its rolls diameter is large and the equipment inflexibility is insufficient
2. It's easy to generate indentation when leveling some special materials, such as mirror sheet
3. Limited by roller spacing and roller clearance, it is easy to cause sunk defects of work pieces and make it difficult to feed.
4. It's easy to generate camber when leveling flat steel.
Such problems can be solved or avoided with the use of the hydraulic leveling machine made by us.
Who needs precision leveler?
1. High precision requirements in surface leveling such as saw blade, transmission chain, electronics, auto parts and etc.
2. High strength materials can’t be leveled by ordinary leveler.
Different adjusting methods
1. Electronic adjustment and manual fine adjustment
2. Step by step adjustment
3. Manual adjustment
4. Servo adjustment
