3 in 1 decoiler straightener feeder -MAF6-G series
Material width from 1.0-6.0mm - MAF6-G series
Specially designed for high tension material
Less space occupying
High productivity and feeding accuracy
Less human work and easy operation

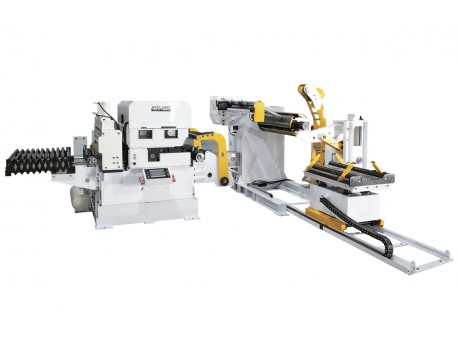

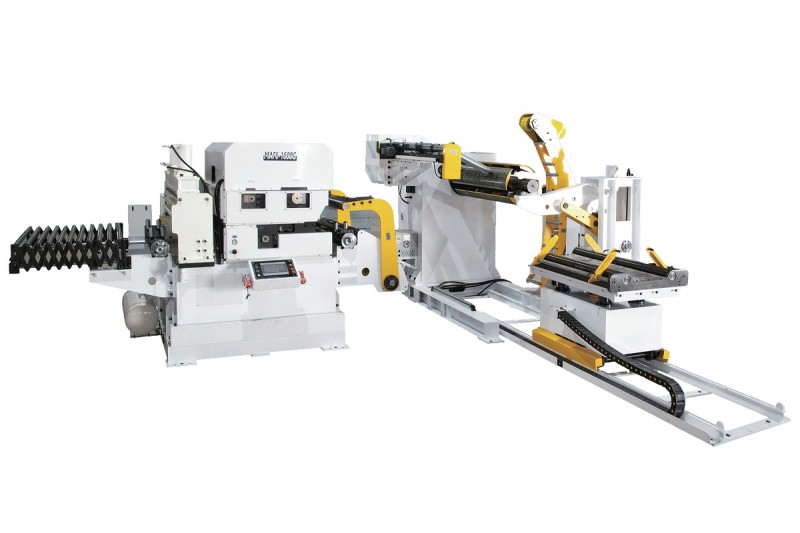

The feeder 3 in 1, also named compact decoiler straightener feeder is a comprehensive device equipped with uncoiler, straightener and feeder three parts. It is designed with the advantages of less space occupying and higher feeding accuracy.
The selectable hydraulic material loading trolley brings convenience to material loading, guarantees the safety in operation and improves the work efficiency.
OPTIONAL PARTS
1. Coil loading trolley, convenient for coil loading and safe operation. Most customers selected
2. Hydraulic shear, used for cutting the deformed material head and tail.
3. Openable leveling, brings convenience for the cleaning of leveling rollers Suitable for productions with high surface requirement such as aluminum, copper and etc. As per customers' material
4. Feeder for the end of coil, suitable for H type press, because of the feeder is far from mold, the feeder designed for the feeding of the end of coil about 2m, to improve the material utilization rate. As per customers' material and press model
|
Model |
MAF6-600G |
MAF6-800G |
MAF6-1000G |
MAF6-1300G |
MAF6-1600G |
MAF6-1800G |
|
Material width |
100～600 |
100～800 |
100～1000 |
100～1300 |
100～1600 |
100～1800 |
|
Material thickness |
1.0-6.0mm |
|||||
|
Max. weight of coil |
5000kg |
7000/10000kg |
10000kg/15000kg |
15000kg |
||
|
Coil inner diameter |
￠460-530mm |
|||||
|
Coil outer diameter |
￠1600mm |
|||||
|
Max. feed speed |
16 m/min |
|||||
|
Leveling rollers |
￠84mm up 5/down 5 |
|||||
|
Feeding rollers |
2 rollers￠120mm |
|||||
|
Uncoiler expansion |
Hydraulic expansion |
|||||
|
Brake system |
electro -magnetic |
disk brake |
||||
|
Servo motor |
AC 7.5kw |
AC 7.5kw |
AC 11kw |
AC 15kw |
AC 22kw |
AC 22kw |
|
Uncoiler motor |
AC 2.2kw |
AC 3.7/5.5kw |
AC 5.5kw/7.5kw |
AC 7.5kw |
||
|
Towing system |
automatic pull feed |
|||||
|
Rollers enforced |
1 set |
2 set of reinforcements |
3 set of reinforcements |
|||
|
Power voltage |
AC 380V |
|||||
|
Air pressure |
6kg |
|||||
|
Machine size |
5.2*3.1*2.4 |
5.2*3.3*2.4 |
5.2*3.5*2.4 |
5.2*3.7*2.4 |
5.7*5.3*2.8 |
5.7*5.6*2.8 |

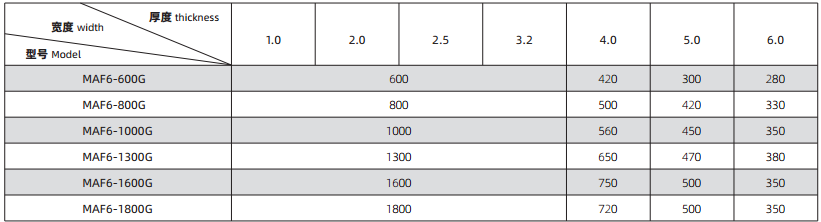

The table of straightening capacity （based on the quality of material Q235）
The above specification are our regular machines. If you can't find machines fit for your needs, welcome to contact us. We can design and make as per your personal needs. Welcome to visit our factory in Yueyang, Hunan, China.
