3 in 1 decoiler straightener feeder - MAF3 series
Material width from 0.3-3.2mm and 0.3-2.0mm - MAF3 series
Less space occupying
High productivity and feeding accuracy
Less human work and easy operation
Fast shipment as we have machines in stock

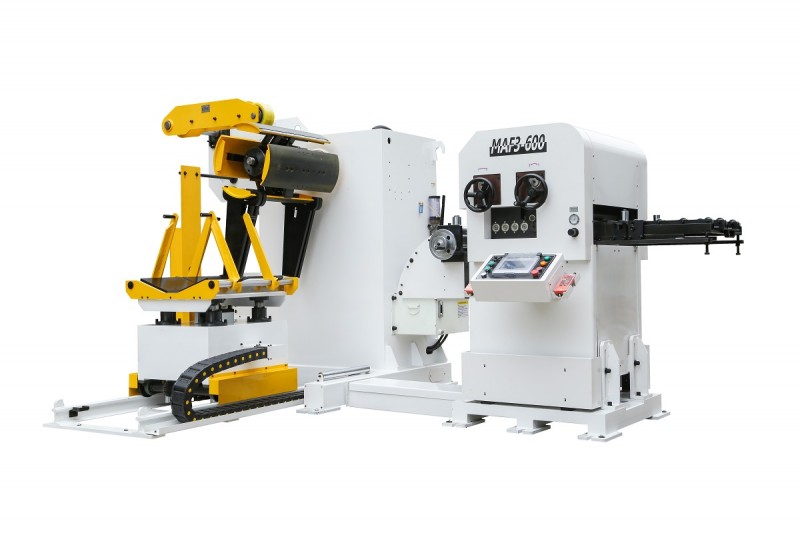

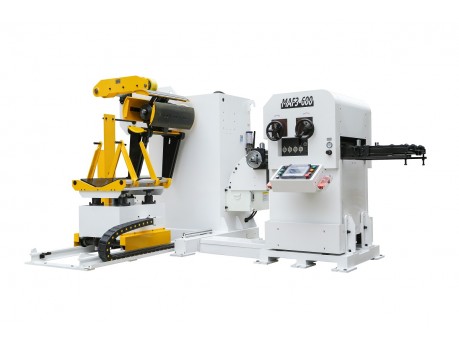

The feeder 3 in 1 is a comprehensive device equipped with uncoiler, straightener and feeder three parts. It is designed with the advantages of less space occupying and higher feeding accuracy.
The selectable hydraulic material loading trolley brings convenience to material loading, guarantees the safety in operation and improves the work efficiency.
OPTIONAL PARTS
1. Coil loading trolley, convenient for coil loading and safe operation. Most customers selected
2. Hydraulic shear, used for cutting the deformed material head and tail
3. Openable leveling, brings convenience for the cleaning of leveling rollers Suitable for productions with high surface requirement such as aluminum, copper and etc. As per customers' material
4. Feeder for the end of coil, suitable for H type press, because of the feeder is far from mold, the feeder designed for the feeding of the end of coil about 2m, to improve the material utilization rate. As per customers' material and press model
|
Model |
MAF3-300 |
MAF3-400 |
MAF3-600 |
MAF3-800 |
MAF3-1000 |
MAF3-1300 |
|
|
Material width |
50～300 |
100～400 |
100～600 |
100～800 |
100～1000 |
100～1300 |
|
|
Material thickness |
0.3-3.2mm |
0.3-2.0mm |
|||||
|
Max. weight of coil |
2000kg |
3000kg |
5000kg |
7000kg |
10000kg |
||
|
Coil inner diameter |
￠460-530mm |
||||||
|
Coil outer diameter |
￠1200mm |
￠1600mm |
|||||
|
Max. feed speed |
16 m/min |
||||||
|
Leveling rollers |
￠48mm 4/4 |
￠48mm up 5/down 5 |
|||||
|
Feeding rollers |
2 rollers |
||||||
|
Uncoiler expansion |
Hydraulic expansion |
||||||
|
Brake system |
Electromagnetic brake |
disk brake |
|||||
|
Servo motor |
AC 2.9kw |
AC 4.4kw |
AC 5.5kw |
AC 7.5kw |
|||
|
Uncoiler motor |
AC 1.1kw |
AC 1.5kw |
AC 2.2kw |
AC 3.7kw |
AC 5.5kw |
||
|
Leveling rollers enforced |
none |
1 set |
2 set of reinforcements |
3 sets |
|||
|
Power voltage |
AC 380V |
||||||
|
Air pressure |
5kg |
||||||
|
Machine size |
3.2*1.8*2.5 |
4.3*3.2*2.7 |
4.3*3.4*2.7 |
4.3*3.6*2.7 |
5.4*5.6*2.8 |
||

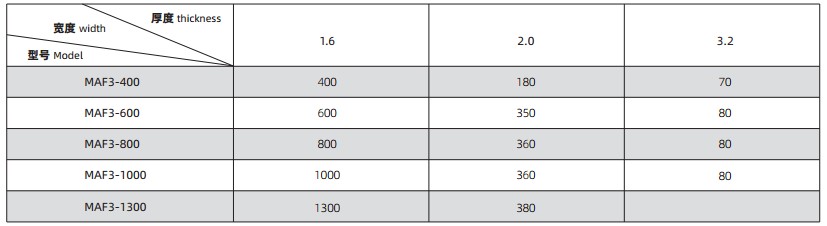

The table of straightening capacity （based on the quality of material Q235）
The above specification are our regular machines, and we have stock for MAF3-300, MAF3-400, MAF3-600, MAF3-800 and MAF3-1000. If you can't find machines fit for your needs, welcome to contact us. We can design and make as per your personal needs. Welcome to visit our factory in Yueyang, Hunan, China.
